Network Storage Locations

ER2 supports the following network storage locations:

• Windows Share
• Unix File Share (NFS)
• Remote Access via SSH
• Hadoop Clusters

Network Storage Scans

Network storage scans can be performed on mounted network share Targets via a Proxy Agent when the Node Agent is installed on a host other than the Target host.

When the Proxy Agent receives instructions from the Master Server to scan a network storage location, the Proxy Agent copies the latest version of the scanning engine to the Proxy host. The Proxy Agent then establishes a secure connection to the Target host and copies data from the Target host to the Proxy host.

The scanning engine is then executed locally on the Proxy host. It scans the data copied from the network storage Target host and sends aggregated results to the Proxy Agent, which in turn relays the results to the Master Server. Data from the Target host is not stored or transmitted to the Master Server. Only a small amount of contextual data for found matches is sent back to the Master Server for reporting purposes.

Once the scan completes, the Proxy Agent deletes the data from the Proxy host and closes the connection.

Licensing

For Sitewide Licenses, all scanned network storage Targets consume data from the Sitewide License data allowance limit.

For Non-Sitewide Licenses, network storage Targets require Server & DB Licenses or Client Licenses, and consume data from the Server & DB License or Client License data allowance limit, depending on the Target operating system.

See Target Licenses for more information.

Windows Share

Requirements

To scan a Windows share Target:

1. Use a Windows Proxy Agent.
2. Ensure that the Target is accessible from the Proxy Agent host.

3. The Target credential set must have the minimum required permissions to access the Target locations to be scanned.

   Recommended Least Privilege User Approach

   Data discovery or scanning of data requires read access. Remediation actions that act directly on supported file systems including Delete Permanently, Quarantine, Encryption and Masking require write access in order to change, delete and overwrite data.

   To reduce the risk of data loss or privileged account abuse, the Target credentials provided for the intended Target should only be granted read-only access to the exact resources and data that require scanning. Never grant full user access privileges or unrestricted data access to any application if it is not required.

Add Target

1. From the New Scan page, Add Targets.
2. In the Select Target Type window, enter the host name of the Windows share server in the Enter New Target Hostname field.
   For example, if your Windows share path is \\remote-share-server-name\remote-share-name, enter the Target Hostname as remote-share-server-name:

3. Click Test. If ER2 can connect to the Target, the button changes to a Commit button.
4. In the Select Types dialog box, click on Network Storage.
5. Under Network Storage Location Type, select Windows Share.

6. Fill in the following fields:


   Field	Description
   Path	Enter the path of the folder to scan. For example: <folder_name>
   Credential Label	Enter a descriptive label for the credential set.
   Username	Enter your user name. See Windows Target Credentials for further information.
   Password	Enter your password, or passphrase for the private key.
   (Optional) Private Key	Upload the file containing the private key. Only required for Target hosts that use a public key-based authentication method. See Set Up SSH Public Key Authentication for more information.
   Agent to act as proxy host	Select a Windows Proxy Agent that matches the Target operating system (32-bit or 64-bit).

7. Click Test, and then + Add Customized to finish adding the Target location.

Windows Target Credentials

For scanning of Windows Share Targets using a Windows proxy agent, use the appropriate user name format when setting up the target Windows hosts credentials:

Remediating Windows Share Targets

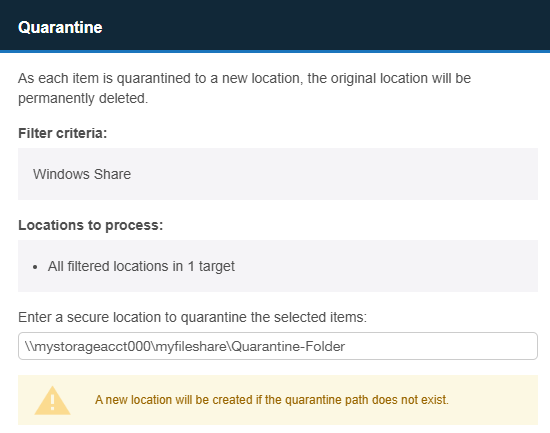

When remediating match locations on Windows Share Targets using the "Quarantine" option, you can specify a secure location on the Windows Share Target or Windows Proxy Agent host.

Use the following syntax in the "Enter a secure location to quarantine the selected items" field to specify the absolute path to a secure quarantine location on the:

• Windows Share Target

  # Syntax: \\<remote-share-server-name>\<remote-share-name>\<quarantine-folder> \\Windows-Share-Server\Engineering\Quarantine-Folder

• Windows Proxy Agent host

  # Syntax: <quarantine-folder-on-proxy-agent-host> C:\Quarantine-Folder

See Remediation - Act Directly on Selected Location for more information.

Unix File Share (NFS)

Requirements

Select the Unix File Share Target type when scanning a Network File System (NFS) share.

To scan a Unix file share Target:

• Use a Unix or Unix-like Proxy Agent.
• The Target credential set must have the minimum required permissions to access the Target locations to be scanned.
• The Target must be mounted on the Proxy Agent host.

• The Path field must be set to the mount path on the Proxy host when adding a Unix file share Target.

  Recommended Least Privilege User Approach

  Data discovery or scanning of data requires read access. Remediation actions that act directly on supported file systems including Delete Permanently, Quarantine, Encryption and Masking require write access in order to change, delete and overwrite data.

  To reduce the risk of data loss or privileged account abuse, the Target credentials provided for the intended Target should only be granted read-only access to the exact resources and data that require scanning. Never grant full user access privileges or unrestricted data access to any application if it is not required.

To mount an NFS share server, on the Proxy host, run as root:

# Requires nfs-common. Install with `apt-get install nfs-common` mount <nfs-server-hostname|nfs-server-ipaddress>:</target/directory/share-name>

Add Target

1. From the New Scan page, Add Targets.
2. In the Select Target Type window, enter the host name of the Unix file share server in the Enter New Target Hostname field. This is usually an NFS file server.
   For example, if your Unix file share path is //remote-share-server-name/remote-share-name, enter the Target Hostname as remote-share-server-name:

3. Click Test. If ER2 can connect to the Target, the button changes to a Commit button.
4. In the Select Types dialog box, click on Network Storage.
5. Under Network Storage Location Type, select UNIX File Share.

6. Fill in the following fields:


   Field	Description
   Path	Enter the file path to scan. This is the mount path on the Proxy host for the Unix file share Target. For example: <folder_name/file_name.txt>
   Agent to act as proxy host	Select a Linux Proxy Agent. File share must be mounted on the selected Linux Proxy Agent host.

7. Click + Add Customised to finish adding the Target location.

Remote Access via SSH

Requirements

To scan a Target using remote access via SSH:

1. The Target host must have an SSH server running on TCP port 22.
2. The Proxy Agent host must have an SSH client installed.

Supported Operating Systems

ER2 supports the following operating systems as remote access via SSH Targets:

Microsoft Windows Operating Systems

Ground Labs supports and tests ER2 for all Windows versions supported by Microsoft.

Prior versions of Windows may continue to work as expected. However, Ground Labs cannot guarantee support for these versions indefinitely.

Linux Operating Systems

Ground Labs supports and tests ER2 for all Linux distributions currently supported by the respective providers.

Prior versions of Linux distributions may continue to work as expected. However, Ground Labs cannot guarantee support for these versions indefinitely.

macOS Operating Systems

Ground Labs supports and tests ER2 for all macOS versions supported by Apple Inc.

Prior versions of macOS may continue to work as expected. However, Ground Labs cannot guarantee support for these versions indefinitely.

Add Target

1. From the New Scan page, Add Targets.
2. In the Select Target Type window, enter the host name of the remote share server in the Enter New Target Hostname field. The remote share server must have an SSH server running.

3. Click Test. If ER2 can connect to the Target, the button changes to a Commit button.
4. In the Select Types dialog box, click on Network Storage.
5. Under Network Storage Location Type, select Remote access via SSH.

6. Fill in the following fields:


   Field	Description
   Path	Enter the file path to scan. For example, <folder_name/file_name.txt>.
   Credential Label	Enter a descriptive label for the credential set.
   Username	Enter your remote host user name.
   Password	SSH password authentication: Enter your remote host user password. SSH key pair authentication using private key (password-protected): Enter the passphrase for the private key. SSH key pair authentication using private key (non password-protected): Leave the field blank.
   Private Key	Upload the file containing the private key compatible with SSH format. For example, userA_ssh_key.pem. See Set up SSH Public Key Authentication for more information. The user account on the remote host must be configured to enable SSH key-pair authentication.
   Proxy Agent	Select a Proxy Agent host with direct Internet access.

   Recommended Least Privilege User Approach

   Data discovery or scanning of data requires read access. Remediation actions that act directly on supported file systems including Delete Permanently, Quarantine, Encryption and Masking require write access in order to change, delete and overwrite data.

   To reduce the risk of data loss or privileged account abuse, the Target credentials provided for the intended Target should only be granted read-only access to the exact resources and data that require scanning. Never grant full user access privileges or unrestricted data access to any application if it is not required.

7. Click Test, and then + Add Customized to finish adding the Target location.

Hadoop Clusters

Requirements

To scan a Hadoop Distributed File System (HDFS) cluster, you must have:

1. A Target NameNode running Apache Hadoop 2.7.3 (minimum version), Cloudera Distribution for Hadoop (CDH), or similar.
2. A Proxy host running the Linux 3 or 4 Agent with database runtime components for RPM-based Linux systems. See Install Linux 3 or 4 Agent for more information.
3. A valid Kerberos ticket if Kerberos authentication is enabled. See Generate Kerberos Authentication Ticket.

Install Linux 3 or 4 Agent

To install the Linux 3 or 4 Agent with database runtime components:

1. On the designated Proxy host, go to the Web Console and navigate to Settings > Agents > Node Agent Downloads.

2. In the list of Node Agents available for download, select the Linux 3 64bit (Red Hat) (RPM) * or Linux 4 64bit (Red Hat) (RPM) * Agent.

   Make sure that the Agent installation package has "database-runtime" in its Filename.

3. To install the Linux 3 64bit (Red Hat) (RPM) * or Linux 4 64bit (Red Hat) (RPM) * database runtime Agent, run the following commands in a terminal on the designated Proxy Agent host:

   # Remove existing ER2 packages rpm -e er2
# Install the epel-release package yum install epel-release
# Install the required packages yum install libxml2 libgsasl openssl libcurl libuuid protobuf krb5-libs libaio
# Install the Linux 3 or 4 Agent, where 'er2-2.x.x-linuxx-rh-x64_database-runtime.rpm' is the location of the rpm package on your computer. rpm -ivh er2-2.x.x-linuxx-rh-x64_database-runtime.rpm

4. (Optional) Generate Kerberos Authentication Ticket.

Generate Kerberos Authentication Ticket

If Kerberos authentication is enabled for your HDFS cluster, run the following commands in a terminal on the designated Proxy Agent host.

To generate a Kerberos ticket:

1. (Optional) Check if a valid Kerberos ticket has been issued for the principal user:

   klist

2. Generate a Kerberos ticket as a principal user:

   # kinit <username>@<domain> kinit userA@example.com

To renew an expired Kerberos ticket:

1. If the ticket has expired within its renewable lifetime:

   # kinit -kt '<path to keytab file>' <username>@<domain> kinit -kt '/home/hadoop/userA.keytab' userA@example.com

2. If the ticket has expired beyond its renewable lifetime:

   kdestroy
# kinit <username>@<domain> kinit userA@example.com

   Running the kdestroy command destroys all of the user's active Kerberos authorization tickets.

Add Target

1. From the New Scan page, Add Targets.
2. In the Select Target Type window, enter the host name of the NameNode of the HDFS cluster in the Enter New Target Hostname field.
   For example, if your HDFS share path is hdfs://remote-share-server-name/remote-share-name, the host name of the NameNode is remote-share-server-name. Enter the Target Hostname as remote-share-server-name:

3. Click Test. If ER2 can connect to the Target, the button changes to a Commit button.
4. In the Select Types dialog box, click on Network Storage.
5. Under Network Storage Location Type, select HDFS.
6. Fill in the following fields:


   Field	Description
   Path	Enter the file path to scan. For example, <folder_name>/<file_name>. If the NameNode is accessed on a custom port (default: 8020), enter the port before the HDFS file path: (port=<port>)<folder_name>/<file_name>. For example, to scan a Hadoop cluster with NameNode accessed on port 58020, enter (port=58020)folder-A/file-A.txt.
   Proxy Agent	Linux 3 or 4 Agent with database runtime components.

7. Click + Add Customised to finish adding the Target location.

   Recommended Least Privilege User Approach

   To reduce the risk of data loss or privileged account abuse, the Target credentials provided for the intended Target should only be granted read-only access to the exact resources and data that require scanning. Never grant full user access privileges or unrestricted data access to any application if it is not required.
