Enterprise Recon 2.1

Add Targets

To add a Target to a scan:

  1. Log into the ER2 Web Console.
  2. Go to the New Scan page by clicking on:
    • Scans > New Scan, or
    • the New Scan button in the Dashboard, Targets or Scans > Schedule Manager page.
  3. On the Select Locations page, you can:
  4. Select a Target type. See the individual pages under Target Type for detailed instructions.
  5. (Optional) Edit the Target location to change the Target location path. See Edit Target Location Path.
  6. Click Next to continue scheduling the scan.

Target Type

You can add the following Target types:

Select Locations

Add an Existing Target

Targets that have been previously added are listed in the Select Locations page.

Adding an existing Target will take its previously defined settings and add them to the scan.

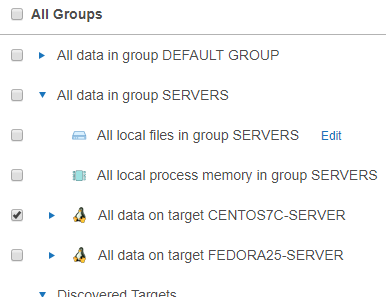

List of Targets in Select Locations page with "All data on target CENTOS7C-SERVER" selected.

To add a previously unlisted location to an existing Target, click + Add New Location.

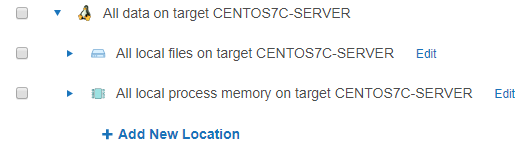

Add New Location to an existing Target in the Select Locations page.

Add a Discovered Target

New Targets found through Network Discovery are listed here.
New Target "FREEBSD11-SERVER" under Discovered Targets in the Select Locations page.

Add an Unlisted Target

Click + Add Unlisted Target to add a Target that is not listed, and enter the Target host name. See the pages under Target Type for instructions.
Add Unlisted Target button to add a new, unlisted Target to the Master Server.

Edit Target Location Path

After adding a Target location and before starting a scan on it, you can change the path of the Target location in Select Locations.

To edit a Target location path:

  1. Add a Target to the scan.
  2. At Select Locations, locate the Target on the list of available Target locations. Click Edit.

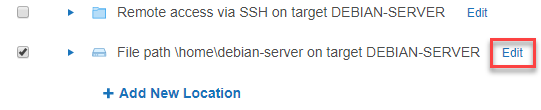

    Click Edit next to a Target location in the Select Locations page to update a Target location.

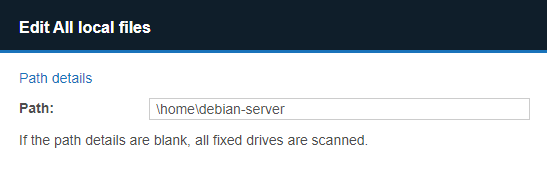

  3. Edit the Path field. See respective pages in Target Type on the path syntax each Target type. Example of "Edit All local files" dialog box with the path set to "\home\debian-server".
  4. Click + Add customised.
